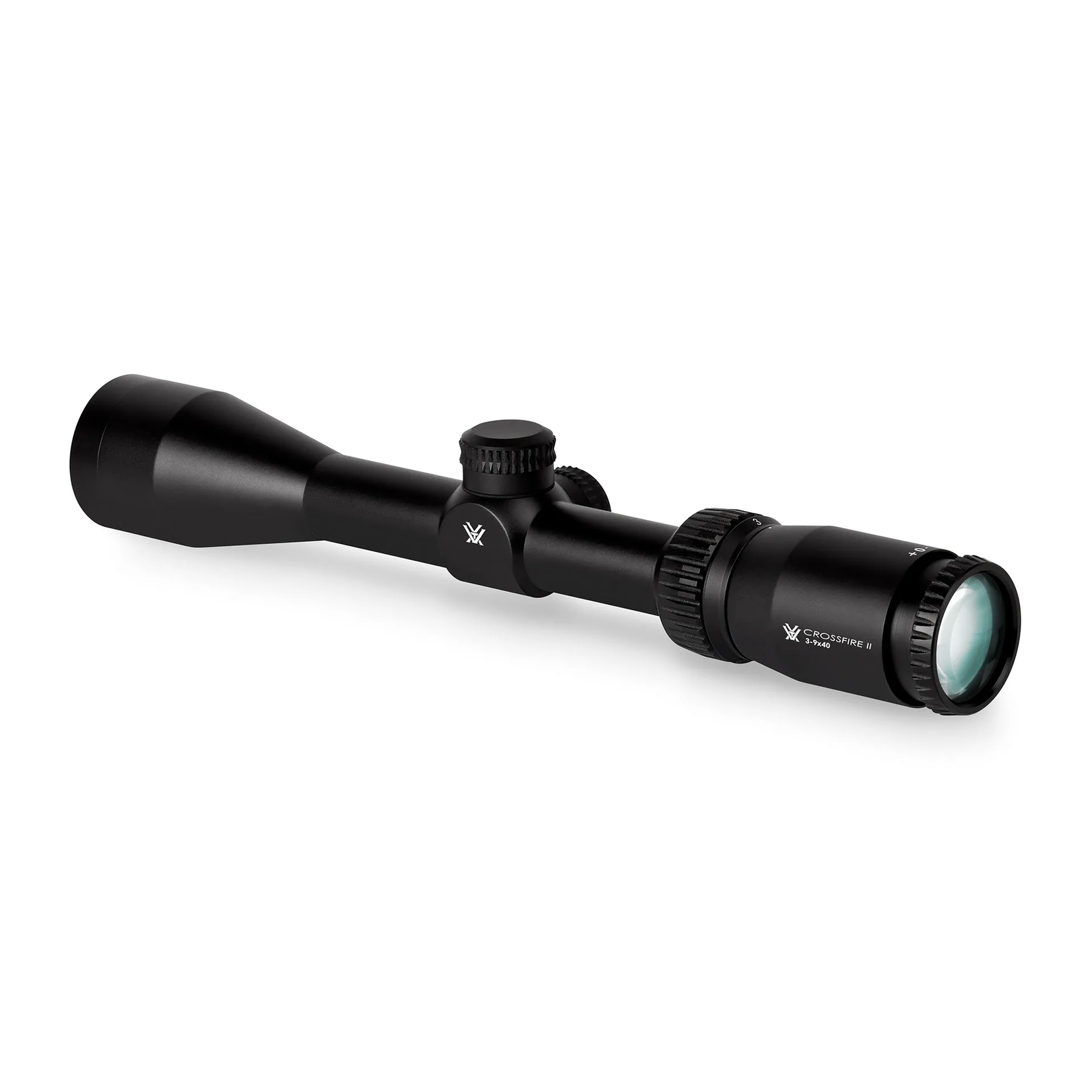

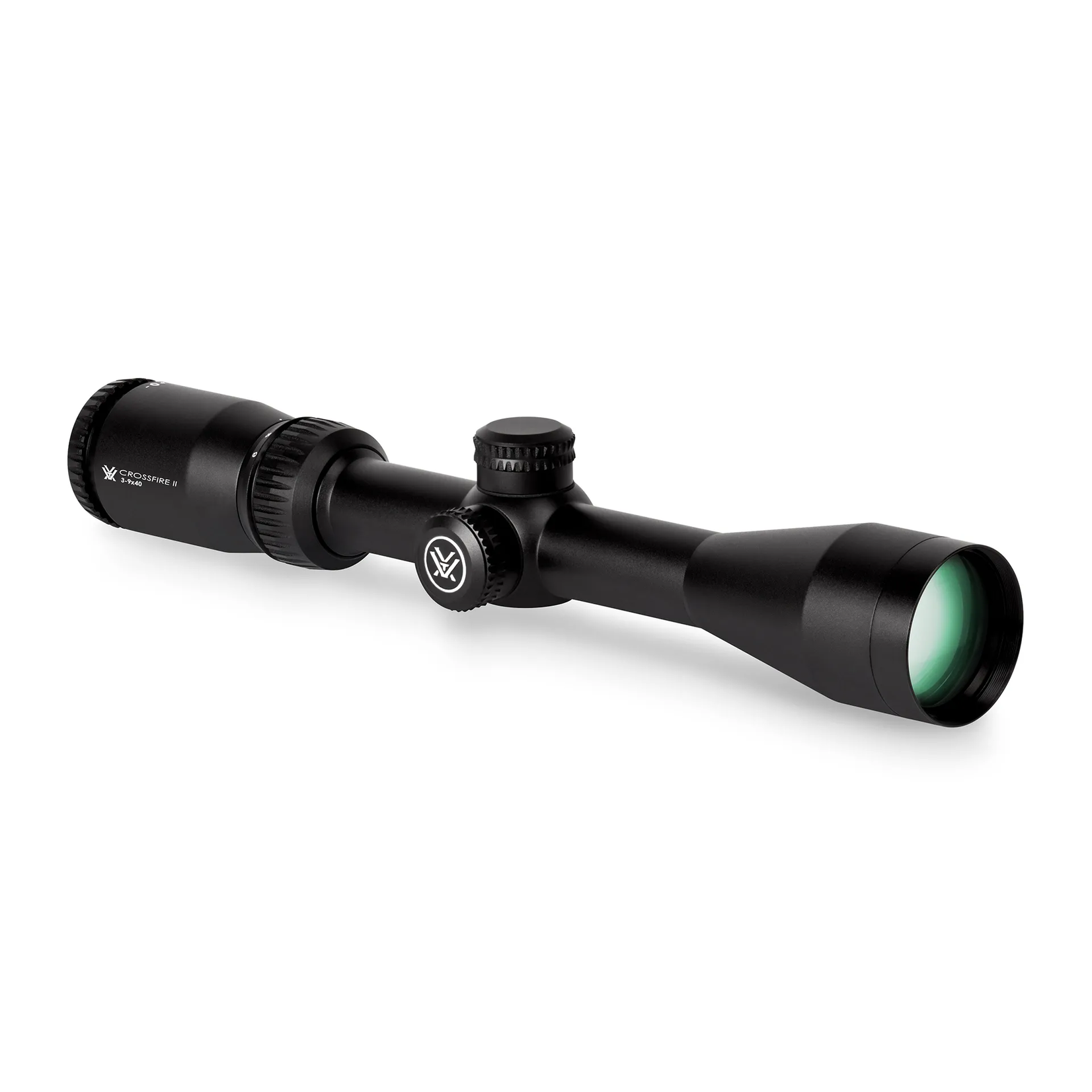

Vortex CROSSFIRE II 3–9x40 BDC Riflescope

High performance meets economical. Clear, tough, and bright, our popular Crossfire II line is built to exceed the performance standards of similarly priced riflescopes. Long eye relief, a fast-focus eyepiece, fully multi-coated lenses, and resettable MOA turrets are hallmarks of the series.

Crossfire II 3-9x40 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
11.86	2.1	2.1	5.1	3.15	3.6

Heights
H1	H2
1.89	1.68

Included in the Box

Removable lens covers
Lens cloth

Magnification 3-9x
Objective Lens Diameter 40 mm
Eye Relief 3.8 inches
Field of View 34.1-12.6 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12.2 inches
Weight 14.8 oz
Product Manual (PDF) Download
Reticle Manual (PDF) Download
Parts Diagram (PDF) Download

OPTICAL FEATURES

Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Capped Reset Turrets Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

CONVENIENCE FEATURES

Fast Focus Eyepiece. Allows quick and easy reticle focusing.

RETICLE

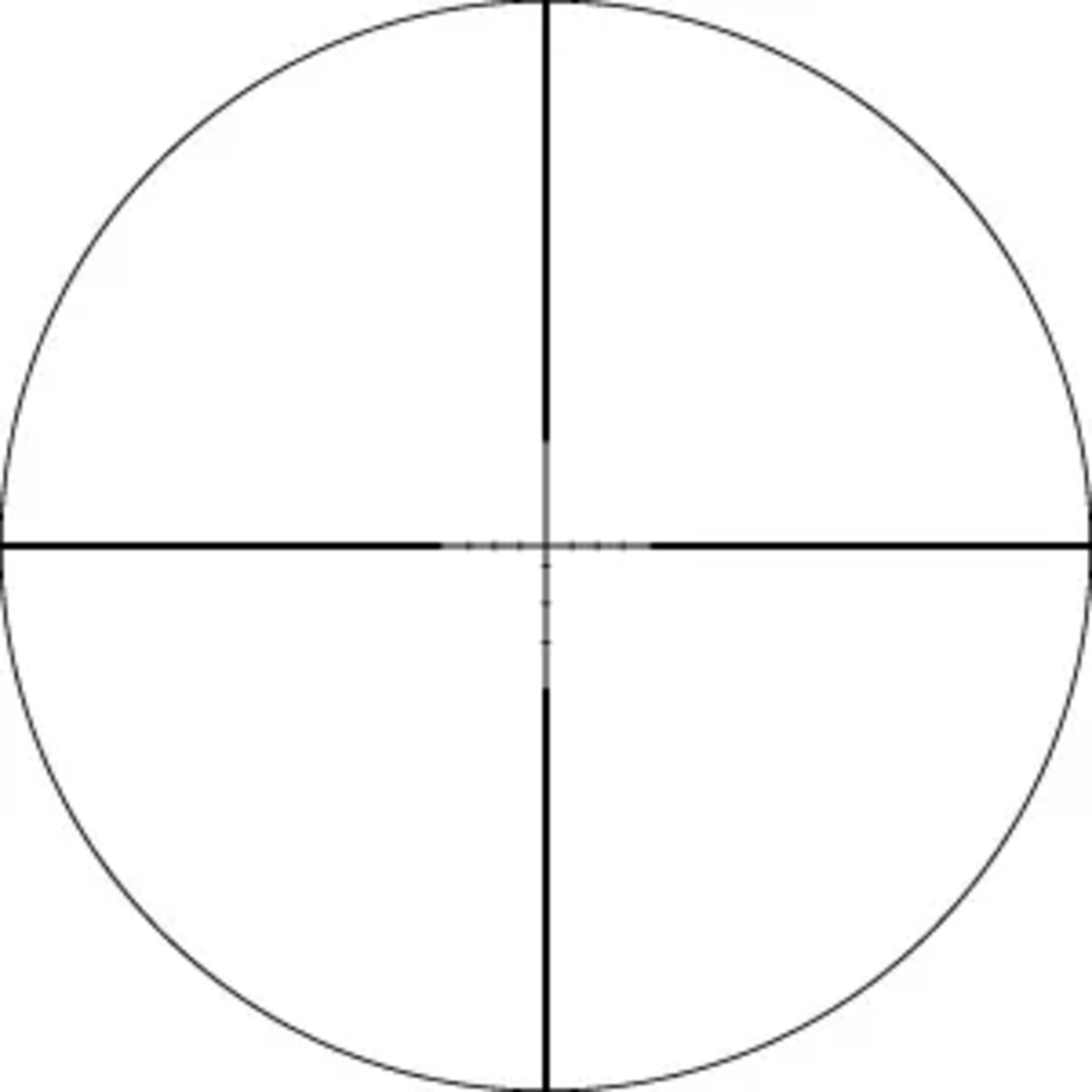

Dead-Hold BDC (MOA)

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Crossfire II 3-9x40 riflescope with Dead-Hold BDC MOA reticle.
